Product

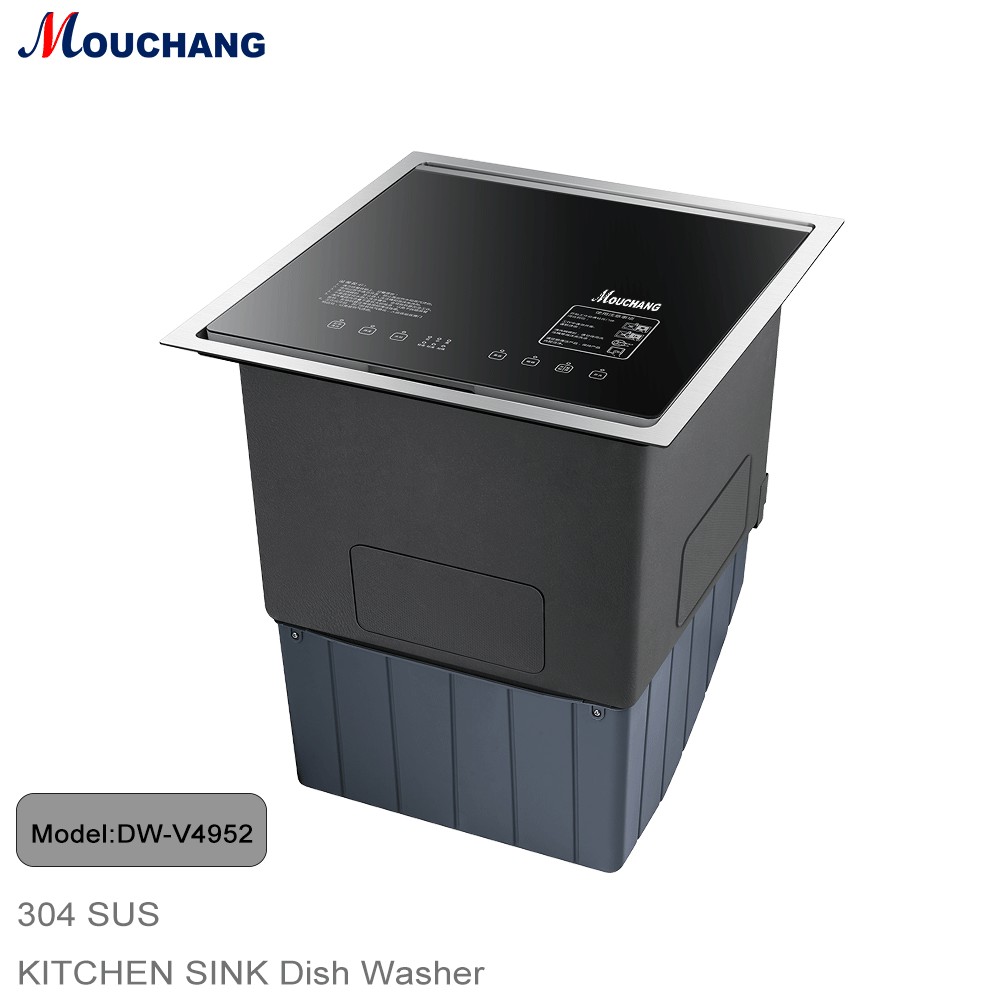

Sink dishwasher DW-V4952
The Embedded sink dishwasher integrates washing dishes, washing fruits and vegetables and storing in one. The sink dishwasher uses a 360-degree rotating spray arm, and the high pressure water flow without dead embedded ultrasonic sink dishwasher set dishwashing, washing fruits and vegetables, storage in one. The sink dishwasher uses 360 degree rotating spray arm, high pressure water flow no dead Angle strong spray, combined with 70 degrees high temperature, quickly dissolve oil, can wash the bowl clean thoroughly. High-temperature steam can effectively kill germs. Intelligent design of residual temperature drying function. One machine multi-purpose, to meet the washing dishes, fruit and vegetable purification, disinfection and other requirements.6 The package is easily loaded and washed once. The tank body of the sink dishwasher is made of 304 stainless steel material, and the embedded ultrasonic wave makes the ultrasonic cleaning strength better. The door of the dishwasher opens the cover design, can open the door to place the dishes. The whole sink dishwasher is embedded installed in the cabinet saving space countertop neat.
Product Parameters
|
Model |
MC-VC4952 |
|
Function |
Ultrasonic fruit and vegetable purification, 70℃ high temperature sterilization, washing dishes, washing fruits and vegetables. |
|
Operate standard |
GB4706.25-2008/GB4706.1-2005 |
|
Rated voltage and frequency |
220V~/50Hz, 10A/250V |
|
Rated power |
1850W |
|
Material of door |
PP and Tempering glass in 3MM thickness |
|
Top surface material and thickness |
304SS, 1.5MM thickness |
|
Material and thickness of Sink bowl |
304SS, 1.05MM thickness |
|
Surface finish |
Handmade sink with satin finish |
|
Heating method |
PTC heating plate (1800W) |
|
Ultrasound |
2PCS, 50W / 40KHz per piece |
|
Normal working water pressure |
0.05MPa-0.3MPa |
|
Operating control method |
Touch control |
|
Key function |
(C-type) : Ultrasonic / Cavity clean / Intensity / Water level / Fruits & vegetable / Dishes / [Start/Pause] / [On/Off]. |
|
Washing method |
Washing dishes by spray, Washing fruit & vegetables by rapid wash with ultrasonic |
|
Drying method |
residual temperature |
|
Water temperature of dish washing |
65~70℃ |
|
Time consumption of dish washing |
Soft wash: 27mins; Standard wash: 32mins; Strong wash: 50mins. |
|
Time consumption of fruit washing |
l Soft wash: Low water lever 11mins, middle water 18mins, High water level 26mins;
l Standard wash: : Low water lever 12mins, middle water 20mins, High water level 28mins; l Strong wash: : Low water lever 13mins, middle water 22mins, High water level 30mins. |
|
Wash capacity / number of cases |
Rice bowl*9, plate*6, soup bowl*3, glass cup*6, spoon, chopsticks |
|
Water inlet pipe |
Length:600mm/ Dia:G1/2 |
|
Product size (with water outlet pipe) |
490*520*660mm |
|
Wash bowl size |
407*407*335mm |
|
Open hole size for installation |
460*490mm |
|
Package |
615*615*545mm （1set/ctn） |
|
Weight |
N.W.:18KGS/CTN, G.W.: 22KGS/CTN |
|
Loading quantity |
121sets/20GP, 315sets/40HQ. |
Product feature
- sink dishwasher is with separate heating plate, and the ultrasonic parts is inset the bottom of sink.
-
- The self-developed procedures of washing dishes, fruits and vegetables, can adjust the procedures according to the local needs of customers and add new functions
-
- 3D stereo high pressure spray, 360 all-directional cleaning
- Suitable dishes, cups and other tableware card position, reasonable placement, to achieve a very good cleaning effect
- 1800W independent heating plate, using the top fast heating technology
- 70 degree high temperature dishes cleaning and spray washing, comprehensive cleaning, but also play a bactericidal role
