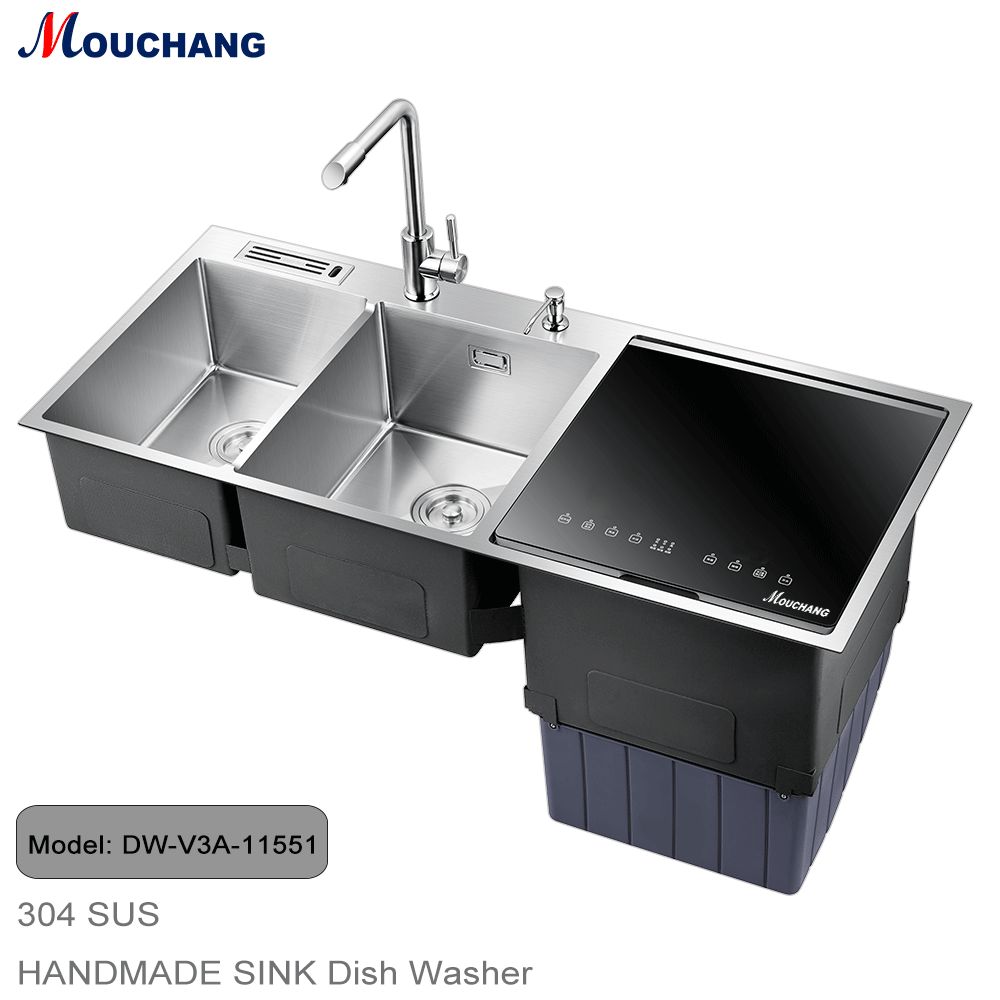

DW-V3A-11551

Model：DW-V3A-11551
Function：Ultrasound wash, washing dishes, washing fruits and vegetables, sterilization
Operate standard：GB4706.25-2008/GB4706.1-2005
Material of door：PP and Tempering glass in 3MM thickness
Top surface material and thickness：304SS, 3MM thickness in handmade
Material and thickness of Sink bow：304SS, 1.5MM thickness
Length and diameter of water inlet pipe：Length:800mm/ Dia:G1/2
Normal working water pressure：0.03MPa-1MPa
Ultrasound：50W/40KHz
Heating method：Heating the heating plate (1800W)
power consumption for washing(kwh)：Soft wash:0.23, standard wash:0.32, Strength wash: 0.40
Water temperature of washing：Quick wash:45℃, standard wash: 60℃, Strength wash: 70℃
Water consumption for dish washing：15L
Water consumption for fruit washing：Low water level:20L, Middle water level:22L, High water level:24L
Water consumption for fruit washing in fruit washing bowl：16L
Product size (with water outlet pipe)：1150*510*660mm
Open hole size for installation：1120*480mm
Washing method：Spray style plus ultrasound wash
Rated voltage and frequency：220V~/50Hz  10A/250V
Rated power：1850W
Wash capacity / number of cases：Rice bowl*9, plate*6, soup bowl*3, glass cup*6, spoon, chopsticks
Weight：G.W.:39Kg/N.W.:24.3Kg
