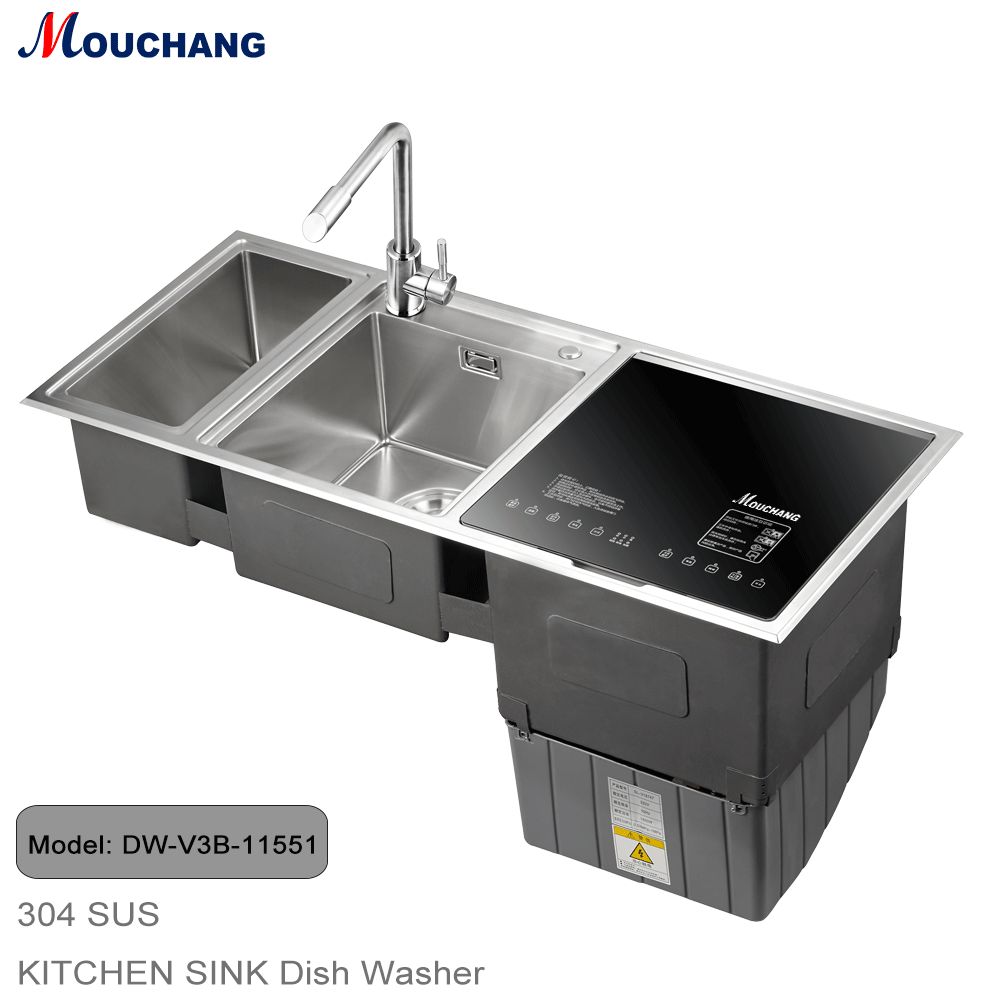

DW-V3B-11551

Model：DW-V3B-11551

Function：Ultrasound wash, washing dishes, washing fruits and vegetables, ozone disinfection

Operate standard：GB4706.25-2008/GB4706.1-2005

Material of door：PP and Tempering glass in 3MM thickness

Top surface material and thickness：304SS, 1.5MM thickness

Material and thickness of Sink bow：304SS, 1.5MM thickness

Length and diameter of water inlet pipe：Length:800mm/ Dia:G1/2

Normal working water pressure：0.03MPa-1MPa

Ultrasound：50W/40KHz

Heating method：Heating the heating plate (1800W)

power consumption for washing(kwh)：Soft wash:0.23, standard wash:0.32, Strength wash: 0.40

Water temperature of washing：Quick wash:45℃, standard wash: 60℃, Strength wash: 70℃

Water consumption for dish washing：15L

Water consumption for fruit washing：Low water level:20L, Middle water level:22L, High water level:24L

Water consumption for fruit washing in fruit washing bowl：16L

Product size (with water outlet pipe)：1150*510*660mm

Open hole size for installation：1120*480mm

Washing method：Spray style plus ultrasound wash

Rated voltage and frequency：220V~/50Hz  10A/250V

Rated power：1850W

Wash capacity / number of cases：Rice bowl*9, plate*6, soup bowl*3, glass cup*6, spoon, chopsticks

Weight：G.W.:39kg, N.W.:23kg

Ozone concentration：Power:6W, Ozone concentration:300mg/h
